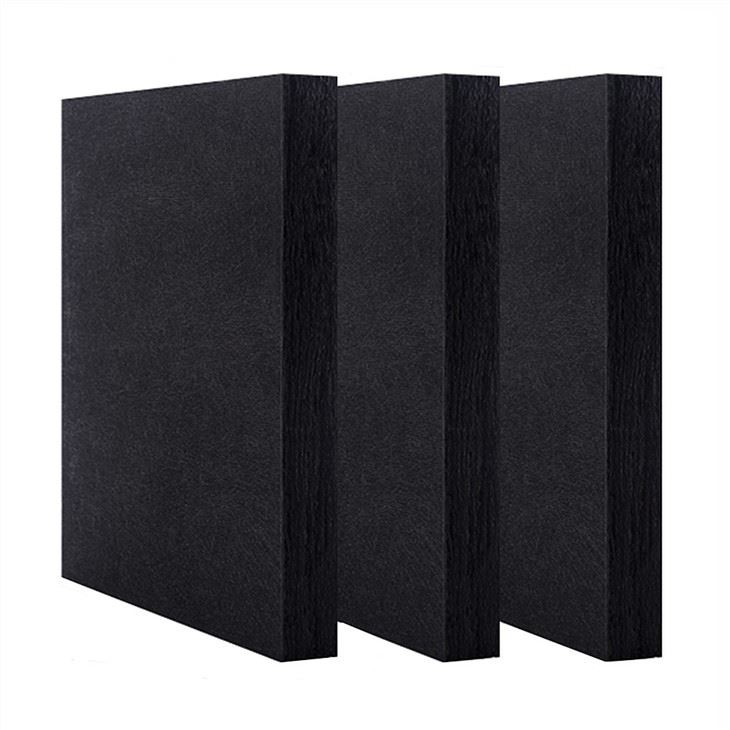

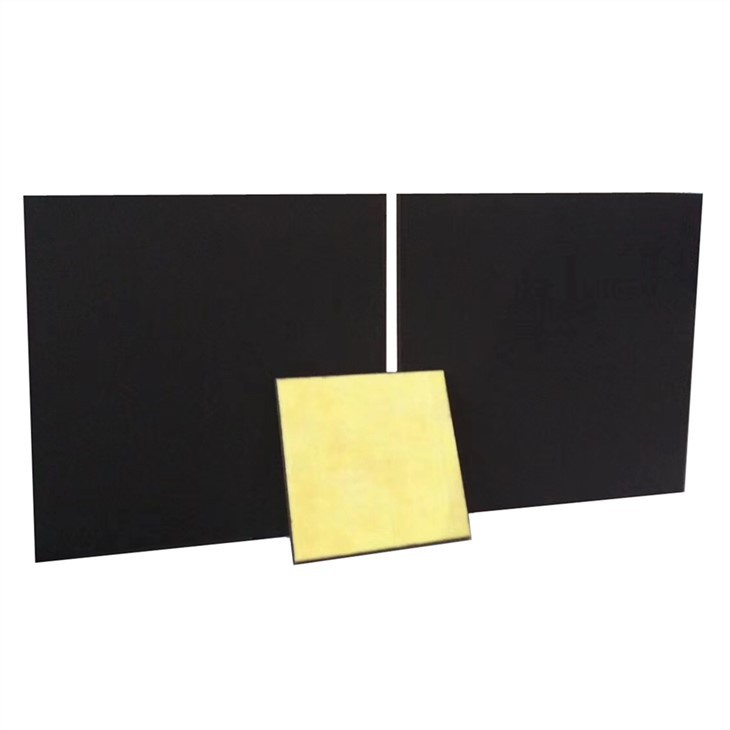

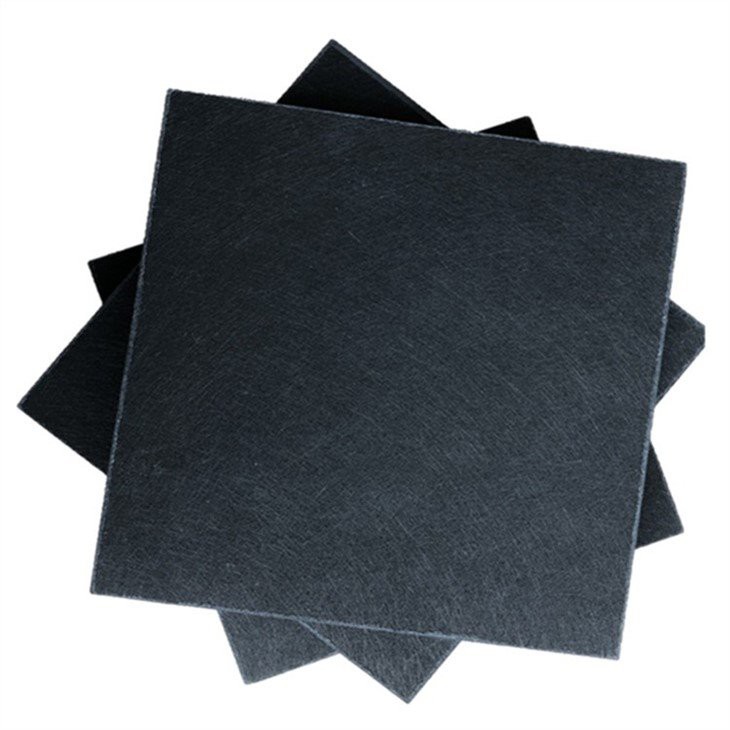

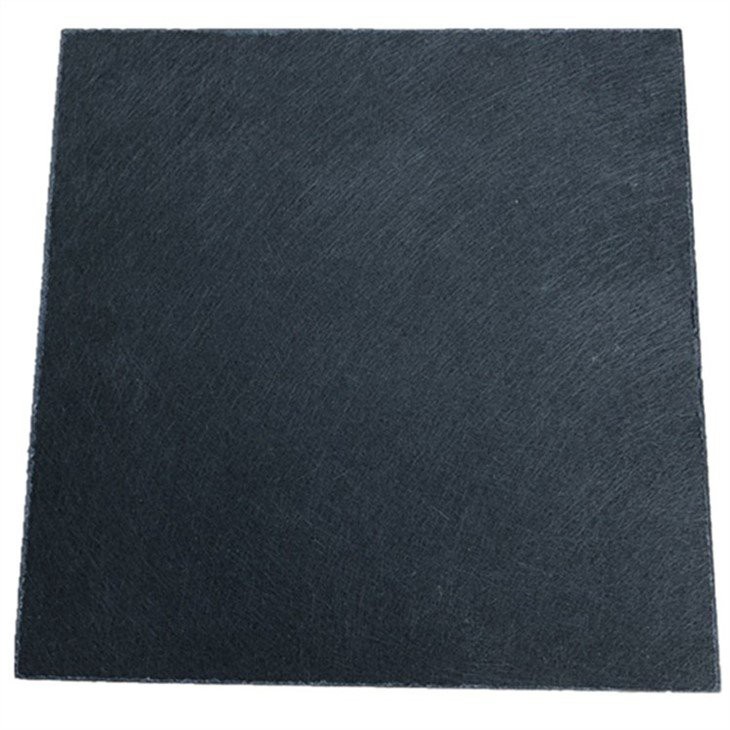

Black Color Fiberglass Acoustic Celling Tile 600x600mm 600x1200mm
The major material of the product is high-quality Glass wool. The fiberglass acoustic board has good performance in heat preservation and flame retardant.
The major material of the product is high-quality Glass wool. The fiberglass acoustic board has good performance in heat preservation and flame retardant. With high intensity and good smoothness, it can be used to decorate the buildings and improve the acoustic environment so as to provide a better environment for people to live and work. At present, the acoustic ceiling has widely used in all kinds of buildings such as cinemas, exhibition galleries, studio rooms, gyms and shopping malls.
The NRC of the fiberglass acoustic ceiling amounted to 0.9, which means the sound wave will not produce the wave reflection on the board surface. Hence, the board can effectively control and adjust the reverberation time to reduce the noise and improve the acoustic fidelity.
Product |
Glass Fiber Acoustic Celling |
Main Material |
High density 100% Centrifugal glass wool |
Face | Fiber glass felt |
Color |
Black, white. Other color is also available. |
Shape |
Square |
Size |
595x595x20mm/600x600x20mm 595x1195x20mm/600x1200x20mm. Other size is also available. |
Thickness |
20mm |
Fire Rating |
Incombustible Class A |
NRC |
NRC>0.9 , GB/T 20247-2006/ISO 354:2003 Class I, GB/T 16731-1997 |
Environment |
Environmental Friendly |
Edges |
Solidified |
Density |
110KGS/m3 Other density is custoerized. |

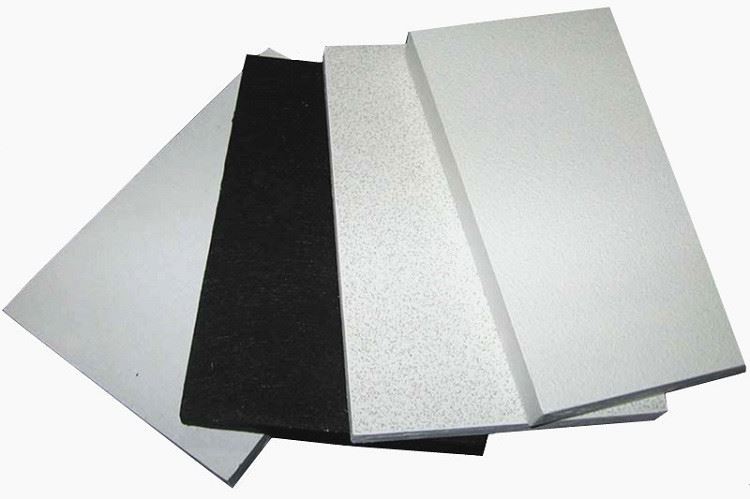

Color Guide
Advantages
Noise-reduction Performance: NRC 0.9
Flame-retardant: Non-combustible.
Thermal Insulation:When used in buildings with air conditioners, the board can prevent the outdoor temperature from increasing/decreasing the indoor temperature so as to save energy effectively.
Moisture proof.
Anti-bacteria.
Smoothness.
Convenience: being lightweight, the fiberglass is easy to move and install that can satisfies the demand of load of the buildings.
Acoustic Absorptivity
Hz |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
4000 |
5000 |
α |
0.33 |
0.6 |
0.49 |
0.8 |
0.87 |
0.97 |
0.78 |
0.69 |
0.91 |
0.96 |
0.94 |
0.92 |
0.96 |
0.98 |
0.97 |
0.99 |
0.99 |
0.98 |

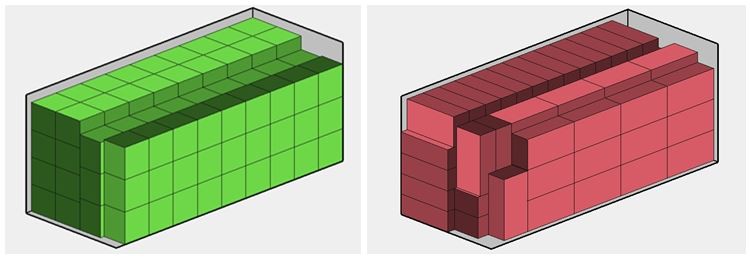

Loading Capacity
Size(mm) |
Thickness(mm) |
Packing Qty/CTN |
Loading Qty(20ftGP) |
595X595 |
20 |
26PCS/CTN |
3276PCS/126CTN/27.5CBM |
595X1195 |
20 |
20PCS/CTN |
1760PCS/88CTN/27CBM |

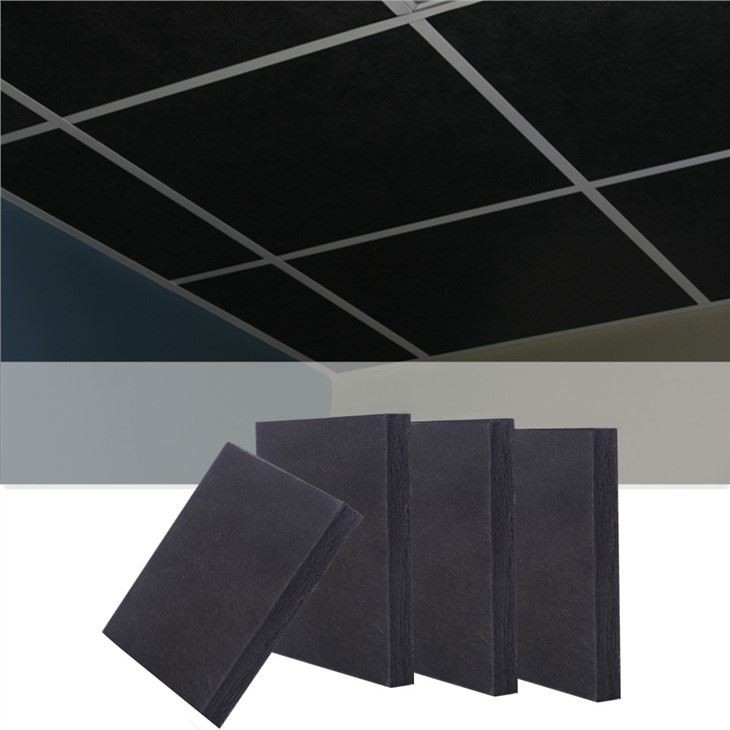

Install

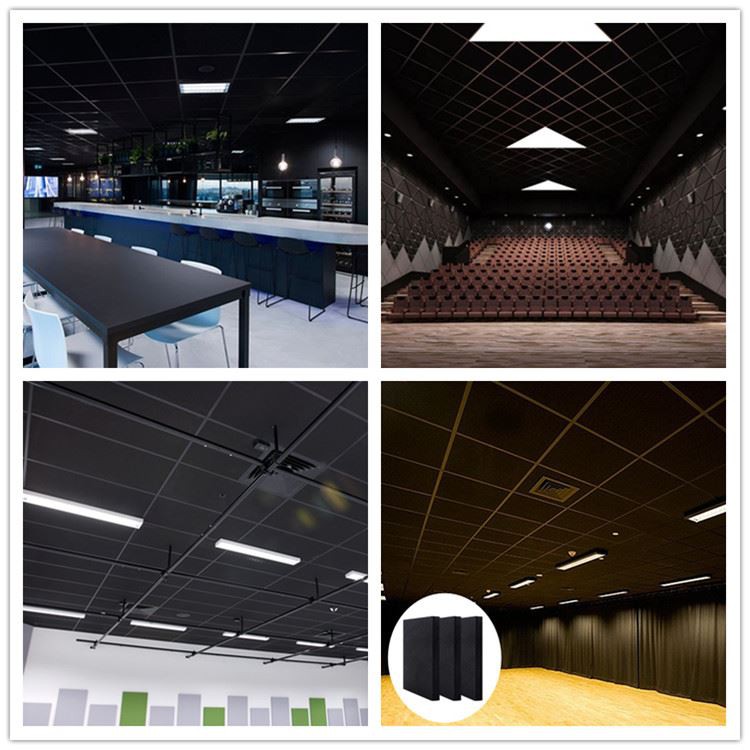

Application
Fiberglass panels have a wide range of uses, such as classroom sound-absorbing ceilings, TV station noise reduction and echo reduction ceiling partition walls, and theater sound-absorbing ceilings. The sound-absorbing effect of fiberglass panels is very good among sound-absorbing materials.
There are many options for the specifications and thickness of the fiberglass board to meet the sound absorption and flame retardant requirements of different occasions. The surface color can be customized in white, black, and other colors. The edges of the board are flat, downgraded, and hidden. The board is the same, and the ceiling construction process of the mineral wool board is also the same. The difference is that the flame retardant, sound absorption and moisture absorption capabilities of the glass fiber board are products that the mineral wool board cannot reach.

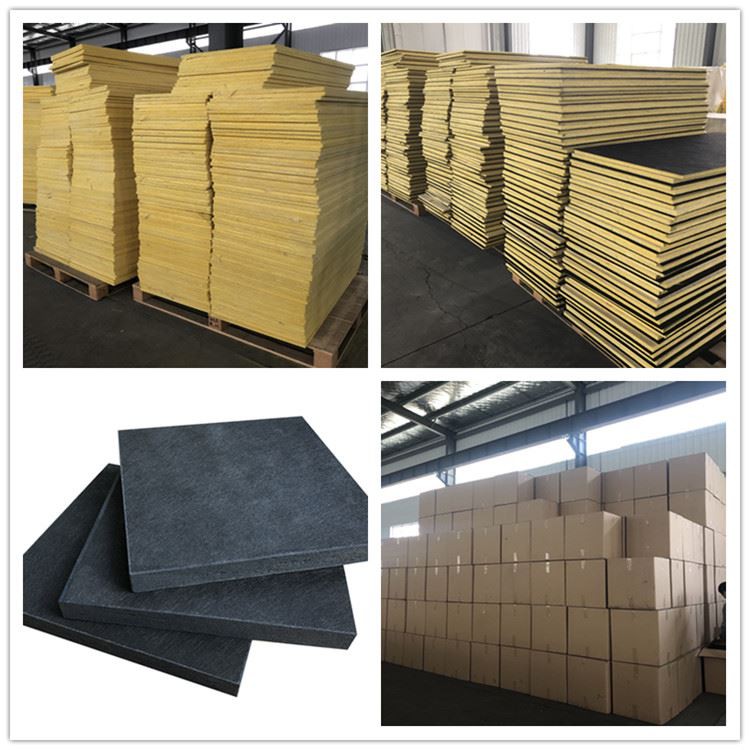

Work Shop
Our Services:
We also provide T and L section profiles for ceiling installation. The price is included in the quotation. You can tell us the height of the ceiling space in advance, and we will match the corresponding hooks. It is worth noting that, since the number of load-bearing profiles used by each construction team is different during actual construction, we do not provide load-bearing profiles and hanging cables. You need to purchase locally according to the suggestions of the construction team or the requirements of the designer.
FAQ:
1. What’s the price?
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. Can I get the sample free?
Free for less than 1 square meter, but the freight cost is collected in advance.
3. What is the minimum order quantity?
1 Carton for regular color. 1000 SQM for personalized color.
4. Can you do OEM?
Of course and welcome. You send us your LOGO, we can print it on the package according to requirement.
