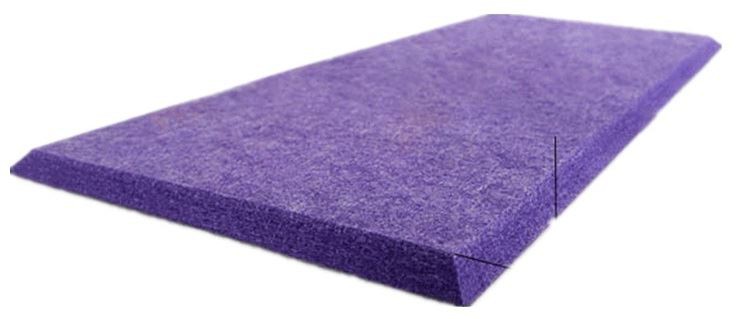

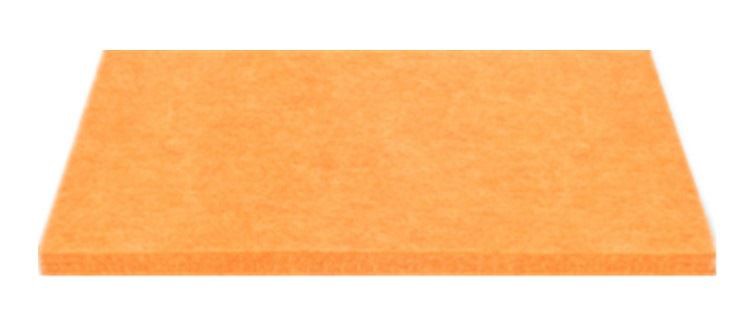

Pet Acoustic Panel 9mm
Material characteristics: 100% polyester fiber is hot-pressed with high technology and made in the shape of cocoon cotton to achieve density diversity to ensure ventilation.
Product |
PET acoustic panel 9mm |
Material |
100% Polyester Fiber |
Color |
optional |
Shape |
Square (standard),others are also available |
Size (mm) |
2420*1220*9MM |
Thickness (mm) |
9mm 12mm 20mm |
Flame retardant |
B1 GB20286-2006, A ASTM |
Enrironment |
GB/T 2912.1-2009 E1 |
Acoustics |
>0.8(NRC) |
Certificate |
EN 15102:2007+A1:2011 & EN12149:1997 (Formaldehyde Release) |
EN 15102:2007+A1:2011 & EN12149:1997 (Migration of Heavy Metals) |
|
EN 15102:2007+A1:2011 Section4.5 & EN12667:2001 (Thermal Resistance) |
|
EN 717-1:2004 (Formaldehyde Emission) |
|
CE |
|
BS476 part 6 & 7 |
|
ASTM E84-2016, Class A (FSI & SDI) |
|
Weight (Kg/pc) |
5.2kg( 9mm panel) |
Weight(Kg/m²) |
1.8-1.9 |
Density(Kg/m³) |
200-210 |
Edges |
Square cut, 45︒angle cut |
Package |
Carton |

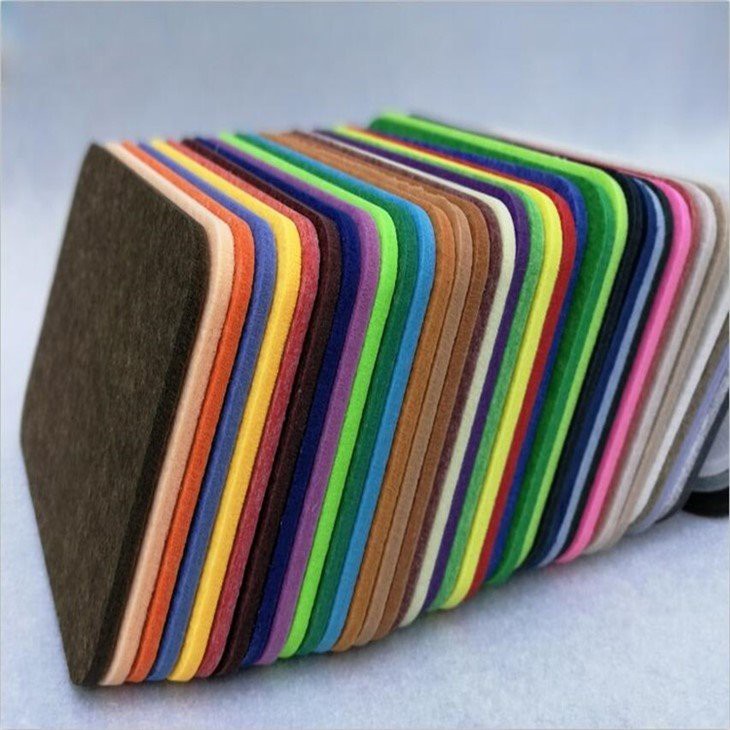

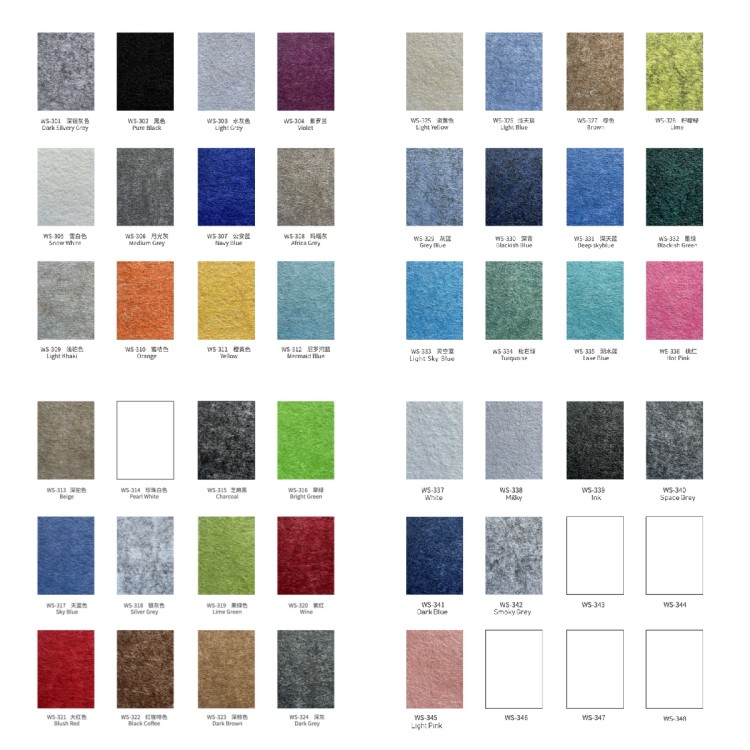

Color Guide
View the models here:
Product Characteristics
Material characteristics: 100% polyester fiber is hot-pressed with high technology and made in the shape of cocoon cotton to achieve density diversity to ensure ventilation. It is an excellent product in sound absorption and heat insulation materials. The highest sound absorption coefficient reaches 0.9 in the noise range of 125~4000HZ Above, according to different needs, shorten the adjustment reverberation time, remove sound impurities, improve the sound effect, and improve the clarity of speech. The product has the characteristics of decoration, heat preservation, flame retardant, environmental protection, light weight, easy processing, stability, impact resistance and easy maintenance. It can not be used as interior decoration. Its composition contains glass filament, which will be mixed in the air when dry, and the damage caused by inhalation is no less than PM2.5. So it is generally used in engineering noise reduction
Install Tool
Work Shop
FAQ:
1. What’s the price?
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. Can I get the sample free?
Sample is Free, but the freight cost is collected in advance.
3. What is the minimum order quantity?
10 sheets of each color. ( Sheet size: 2420x1220mm)
200 sheets for personalized color.
4. Can you do OEM?
Of course and welcome. You send us your design and LOGO, we can manufacture according to them.
