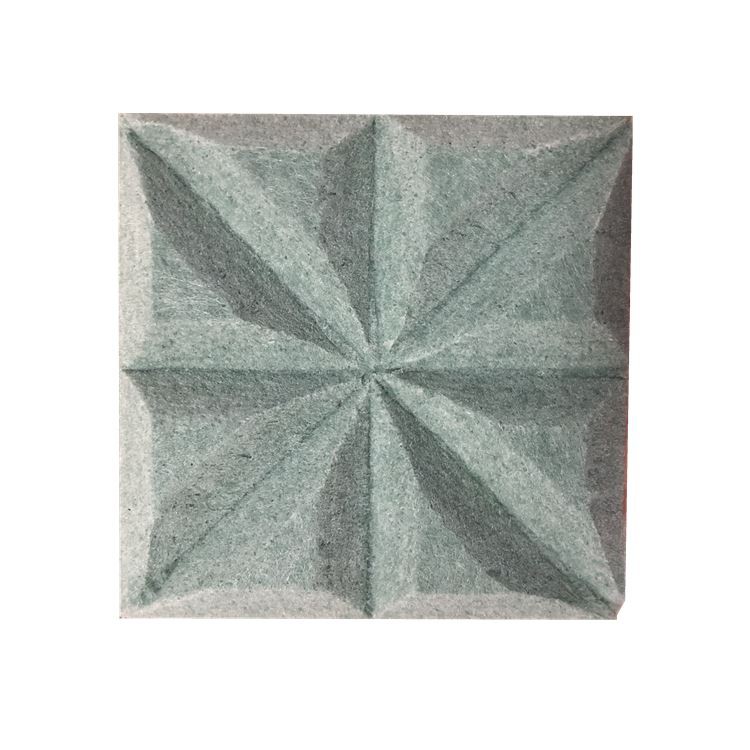

PET Felt Panel V Cutter Board
Similar to the sound absorption characteristics of other porous materials, the sound absorption coefficient of polyester fiber sound-absorbing panels increases with the sound frequency.
Product |
PET Felt Panel V cutter Board |
Color |
optional |
Shape |
Square (standard),others are also available |
Size (mm) |
2420*1220*9MM |
Thickness (mm) |
9mm 12mm 20mm |
Flame retardant |
B1 GB20286-2006, A ASTM |
Enrironment |
GB/T 2912.1-2009 E1 |
Acoustics |
>0.8(NRC) |
Weight (Kg/pc) |
5.2kg( 9mm panel) |
Weight(Kg/m²) |
1.8-1.9 |
Density(Kg/m³) |
200-210 |
Edges |
Square cut, 45︒angle cut |
Package |
Carton |

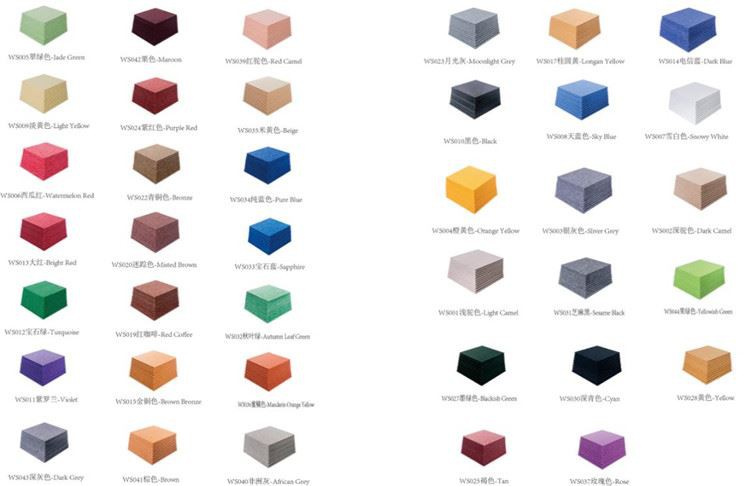

Color Guide
Product Characteristics
1. Sound absorption
Similar to the sound absorption characteristics of other porous materials, the sound absorption coefficient of polyester fiber sound-absorbing panels increases with the sound frequency. The high-frequency sound absorption coefficient is large, and the sound absorption coefficient is greater than 125-4000HZ noise range 0.8, effectively remove sound impurities, improve sound effects and improve language clarity. Among them, the spatial sound absorber is larger and greatly improves the sound absorption performance of the material, and it is a broadband high-efficiency sound absorber. It is widely used in theaters, concert halls, indoor sports halls, conference rooms, HVs, hotels, home audio-visual rooms and other places that have higher requirements for acoustics.
2. Independent and fast
No need for sound-absorbing cotton, no decorative panels, or even auxiliary materials. Through simple basic operations such as sticking, drilling, planing, ruthenium, etc., you can achieve arbitrary sound-absorbing and decorative effects. Reduce overall project cost and construction period.
3. Physical characteristics
Polyester fiber sound-absorbing board is a kind of fiber similar to clothing, and it has the characteristics of heat insulation. After the sheet is formed, it has the characteristics of elasticity, bremsstrahlung, abrasion resistance, impact resistance, tear resistance, resistance to scratches, and large panel width. Bofu polyester fiber sound-absorbing board is an ideal material for decoration.
4. Lightness
The density is only about 0.2, about 2 kilograms per square meter. It is truly lightweight and exquisite, greatly reducing the load on buildings and steel structures, creating a new experience of sound absorption, light body, and decoration integration.

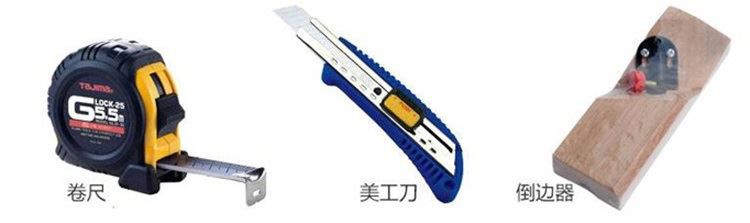

Install Tool

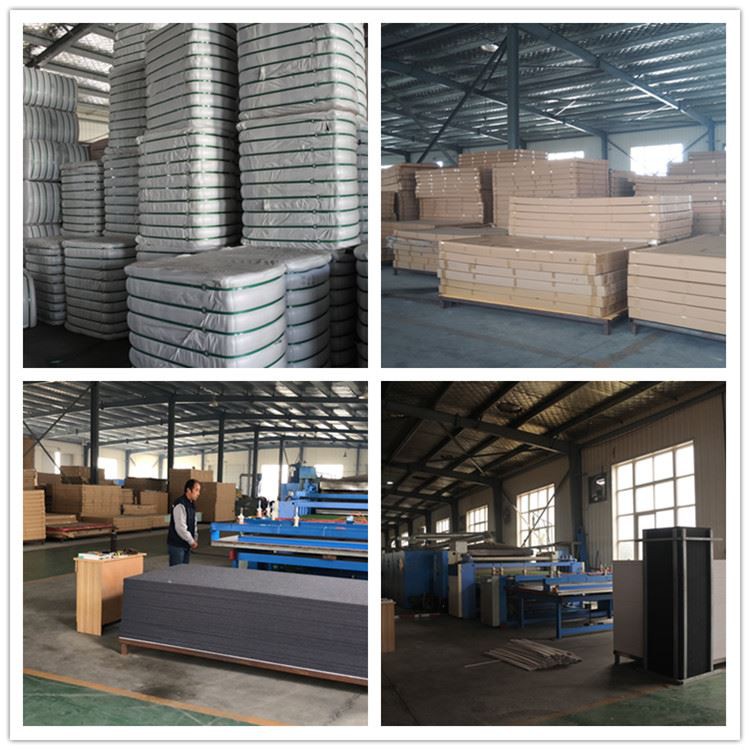

Work Shop
FAQ:
1. What’s the price?
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. Can I get the sample free?
Sample is Free, but the freight cost is collected in advance.
3. What is the minimum order quantity?
10 sheets of each color. ( Sheet size: 2420x1220mm)
200 sheets for personalized color.
4. Can you do OEM?
Of course and welcome. You send us your design and LOGO, we can manufacture according to them.
